EI28型线性电源系列

低频线性电源 日规美规插墙式 安规齐全 UL CUL PSE UL1310和UL1950认证

型号 : 281200100

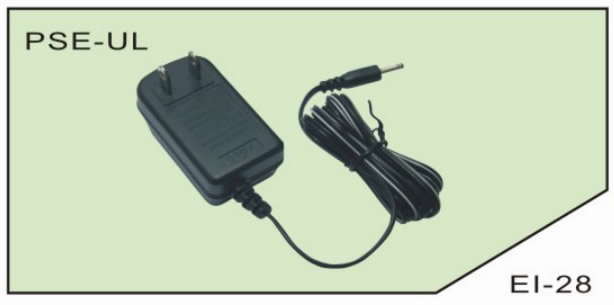

EI28插墙式线性电源

Input voltage: JAPAN-AC 100V;TAIWAN-110V;North America-120V 50/60 Hz

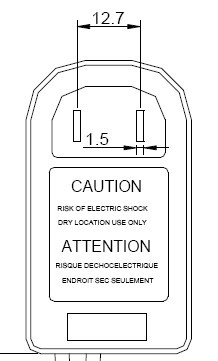

Input plugs : Japan; Taiwan; America;Canada.

Output voltage:1.5-28V

Output current: 10-500 mA

AC Maximum power output: 2.4W

DC Maximum power output: 2.0W

Operating temperature: 0℃~+40℃

Storage temperature: -40℃~+85℃

Relative humidity: 5% to 95% non-condensing

Load regulation: +/-5% variations from minimum to maximum output current.

Insulation resistance: 500VDC Supplied,100M Ohms Minimum Between input to output plug & case.

HI-POT Test: 1240VAC of 1 minute Between Input To output plug & Case.

 (Leakage Current 1 mA).

Inrush current: 50 mA Max.

Mean time between failure: 100,000 hours minimum at full load 25℃ ambient

Temperature Rise: 75 ℃ Max On Primary Coil By The Resistance Method,

 And 50 ℃ Max On The Surface Of The Case By The Thermometer Method At 25 ℃ Ambient, Rated Load condition.

EMI requirements: CE EN 55022:55024; FCC Part 15 Class B

Safety requirements: PSE/UL/CUL;IEC60950; EN61558; EN60950-1; UL1310;UL1950

Warranty:3 years
