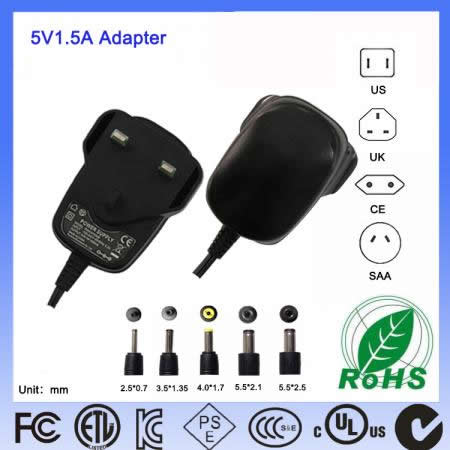

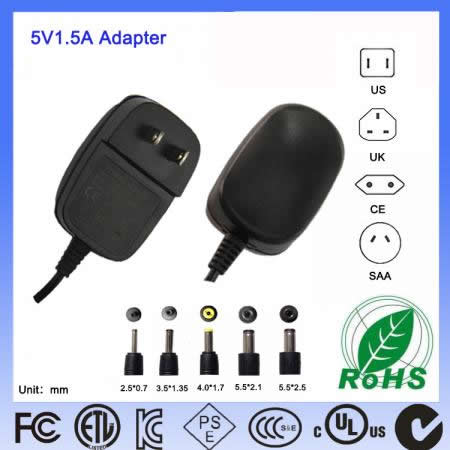

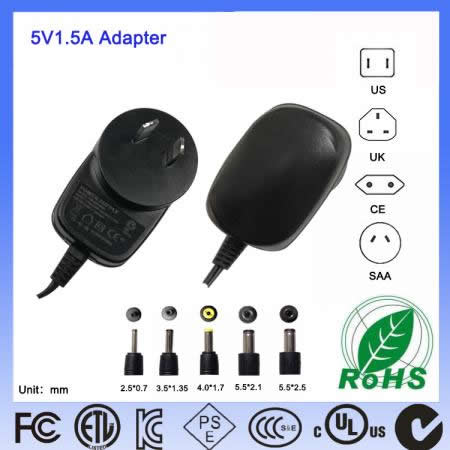

3-15W wall-mounted switching power supply 1) Small size, light weight, streamlined, fully sealed and easy to carry; 2) High cost performance and high reliability; 3) Built-in overvoltage, overcurrent and short circuit protection; 4) Input characteristics: Voltage: 100-240VAC±10 %; Frequency: 50 60Hz; Current: 0 3A Max; Start-up time: 3sMax; Start-up surge current: 20A 240VAC Max; 5) Output characteristics: Constant voltage constant current mode selection; High precision, low noise; Hold time: 20mS Min; 6) Environment: Working temperature: 0°C-40°C, 5%-90%RH; Storage temperature: -20°C-85°C, 5%-95%RH; 7) Cooling method: natural cooling; 8) Energy efficiency: ERP CEC-VI standard; 9) Safety standards: IEC EN60950-1, IEC EN61558, UL1950, GB4943, EN55022, EN55024, EN55014 10) Compliance with ROHS standards; 11) Pin type: UL PSE VDE K-MARK CCC SAA BS Argentina Russia; in-line, folding and conversion type 12) Average failure rate: 50,000 hours; warranty for 3 years.
Model : PS120W0500
Input Voltage: 100~240V AC 50~60Hz

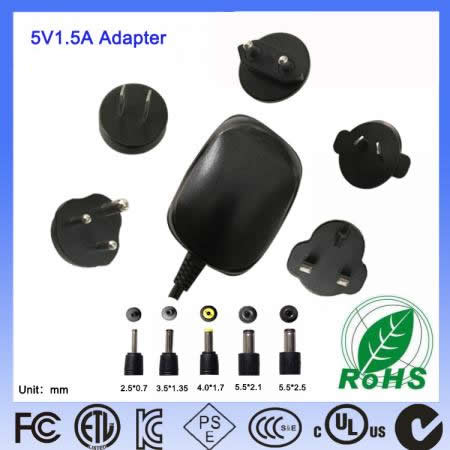

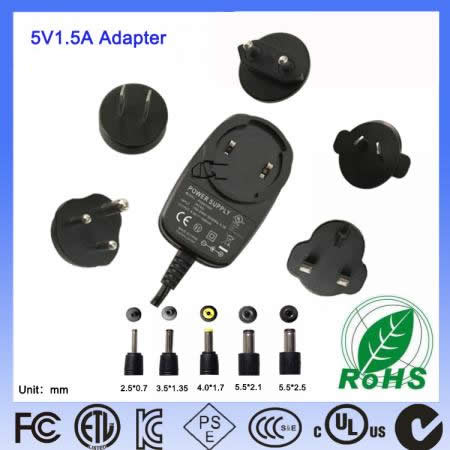

Input plug:Fixed / Interchangeable / Folding plug
Input current: 0.3A Max.
Output Voltage:3~48V(+-5% tolerance)
Output current:0.1A-2.6A
Ripple: 1% peak to peak maximum
Over voltage protection & Over current protection & Over Temperature protection & Short circuit protection.
Temperature coefficient: All out+-0.04%℃ maximum
Transient response:Maximum excursion of 4% or better on all models.Recovering to 1% of final value within 500uS after a 25% step load change.
Operating temperature:0℃~+40℃.
Storage temperature:-40℃~+85℃;.
Relative humidity:5% to 95% non-condensing.
Setup up / Hold up / Rise time:Typical: 3000mS / 16mS / 50mS at full load.
Line regulation:+-1% maximum for any input voltage change between input voltage range
Load regulation:+-5%variations from minimum to maximum output current.
Insulation resistance:50Mohm minimum from output to ground.
Withstand voltage:4300VDC from input to output
Mean time between failure:100,000 hours minimum at full load 25℃ ambient
Energy Saving (Level VI / Level 6)
EMC requirements:FCC CLASS B, EN55022 CLASS B.EN 55024: 1998+A1: 2001+A2: 2003; Part 15 Subpart B, IC ICES-003
Safety requirements:UL 60950-1: 2007,EN 55022:55024/EN 60950-1/EN 61558-1/EN 61558-2-16,EN 60950-1/EN 61558-1/EN 61558-2-16/AfPS GS 214,AS/NZS 60950-1:2011& AS/NZS 3112:2011.
Warranty: 3- Years. |
